What is thermal break window system?
1. A thermal break window system is an advanced fenestration solution that incorporates a special insulating material or "thermal break" within the window frame. This break physically and thermally separates the interior and exterior parts of the frame, reducing the transfer of heat.
2. By interrupting the flow of heat through the frame, it significantly improves the window's energy efficiency. It prevents heat from escaping in cold weather and entering during hot weather, acting as a barrier against thermal conduction.
3. Typically made from materials like polyamide, vinyl, or composite polymers, the thermal break component enhances the overall performance of the window, making it a key feature for modern, energy-conscious building designs.
Why choose thermal break window?
1. Choosing thermal break windows means substantial energy savings. By minimizing heat transfer, they reduce the workload on heating and cooling systems, cutting down on energy consumption and utility bills throughout the year.
2. These windows offer superior comfort. They maintain a more stable indoor temperature, eliminating cold drafts in winter and excessive heat buildup in summer, creating a pleasant living or working environment.
3. Thermal break windows also contribute to environmental sustainability. Lower energy use results in reduced greenhouse gas emissions, helping to minimize your carbon footprint and support a greener planet.

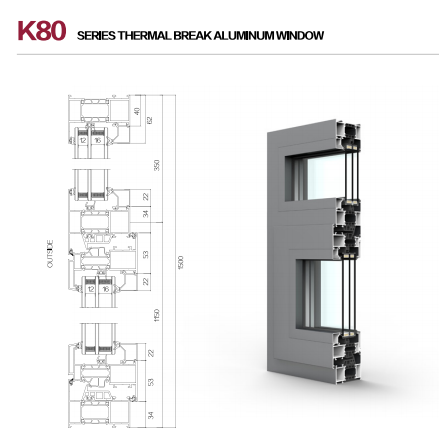

Puci's K80 Series thermal break window and door system
Profile thickness:
Window fan thickness 1.8mm Door frame thickness：1.8mm Door fan thickness: 2.0mm
Specifications:
Fan width:400mm-800mm Fan height:400mm-1900mm Maximum fan load:60kg
Glass:
5mm+16A+5mm+12A+5mm hollow, broken edge can be made 8mm+27A+8mm, also can be made double glass 5mm+27A+5mm
Insulation strip size:35.3mm multi-cavity insulation strip
Product description:

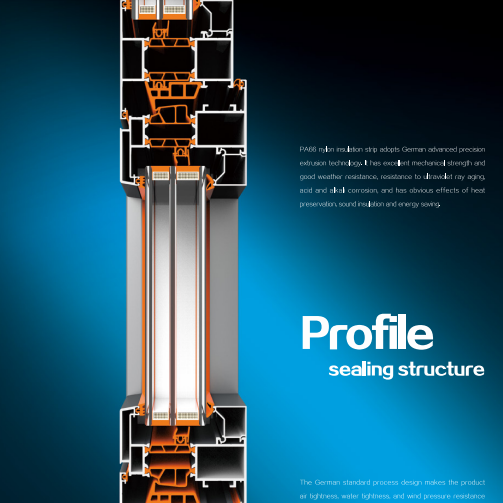

1.The product uses standard 35.3 insulation strips and three-glass two-cavity structural glass, which effectively guarantees the product's thermal insulation and sound insulation functions.
2.1.8mm international profile thickness, standard German process design, make the product air fightness, water tightness, and wind pressure resistance performance effectively reflected.
3.The internal cavities of the fame, stile, and fan are all designed with recangular cavity, with glue-injected comer brace connectors, the connection is fimer and the structure is more stable. The glass bead is a cavity structure, which is not easy to deform.
4.It adopts an intermediate sealing structure,divide the glass into two parts: drainage cavity and sealed cavity, to prevent the hidden danger of poor sealng at the sealing position.
