Your affordable folding doors manufacturer from China

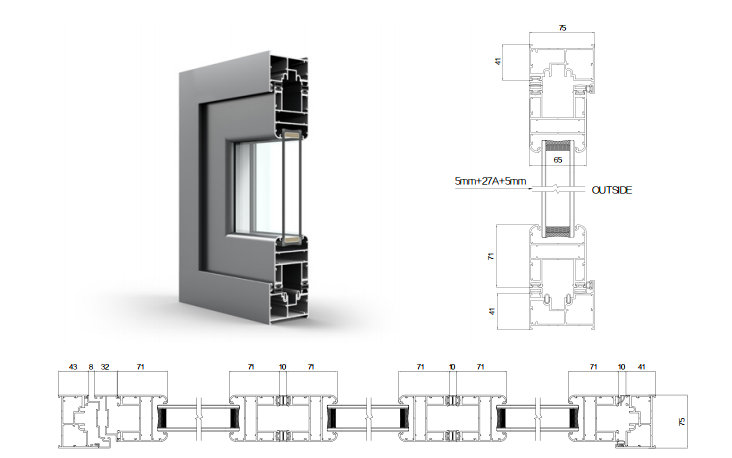

Profile thickness:
rame thickness: 2.0mmFan thickness: 2.0mm
Fan width:650mm-1000mm
Fanheight: 900mm-3500mm
Maximum weight of single glass fan: 100kg
Glass:5mm+27A+5mm doublelaver tempered hollow glass insulation strip size: 14.8mm
GrillS: diamond grills and square grills
Binds: Electric Blinds andmagnetic control Blinds
Product description:
1. The profile fan thickness is 68mm, and the visible surface of the door leaf is 140mm after closing.2.The upper part adopts the bearing design of the positioning pulley block, and the lower par adopts the load-bearing pulley block which has
higher safety performance,
3.Perfect sealing structure design, a vary of door and window types are available, folding fans can be odd and even, more doors can be fresh
folded left and right, concise and bright.
.Arc-shaped sealant is instated between the door leaf and the center column to prevent hands from being caught when pushing the door6.The lower wheel of super load-bearing bearing adopts high load-bearing single-row deep groove ball bearing inside the pulley, which has low
resistance, light and stable operation,wear resistance and long product life
6. The profile adopts EPDM sealing tape, which is not easy to age, more durable, and achieves a more comprehensive sealing effect
